Description

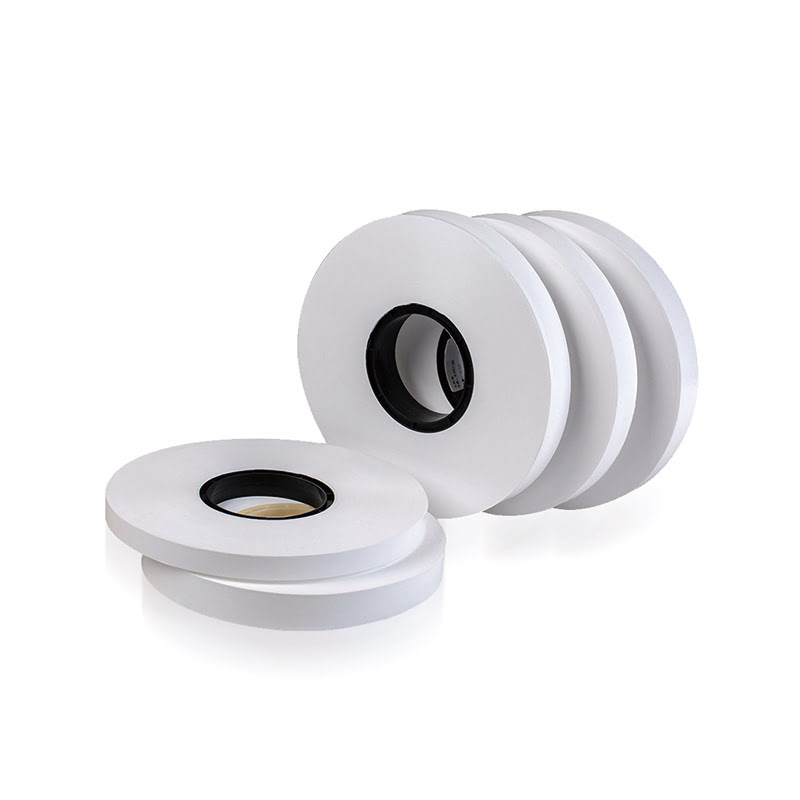

Sintered PTFE Film is made from polytetrafluoroethylene resin, cut into film by advanced process, and then calendered at specific temperature by precision calendering equipment. This product has high crystallinity, closely arranged molecular orientation, minimal porosity, and significantly improved electrical and mechanical properties.
Characteristics
• Excellent flatness
• Excellent surface finish
• Excellent electrical properties
| Code List NO. |
Thickness um |
Density g/cc |
Longitudinal Tensile MPa |
Longitudinal Elongation % |
Dielectric Strength KV/mm |
Operating Temperature ℃ |
| 15600-S020-S200 | 20~200±10 | 2.18±0.05 | >40 | >74 | >4 | -180~250 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1.Width, Length, ID and OD... All can be adjusted according to the customer request.
2.Jumbo Roll, Slit Pad, Traverse Spool... Package are available upon request.
