Applications
Description

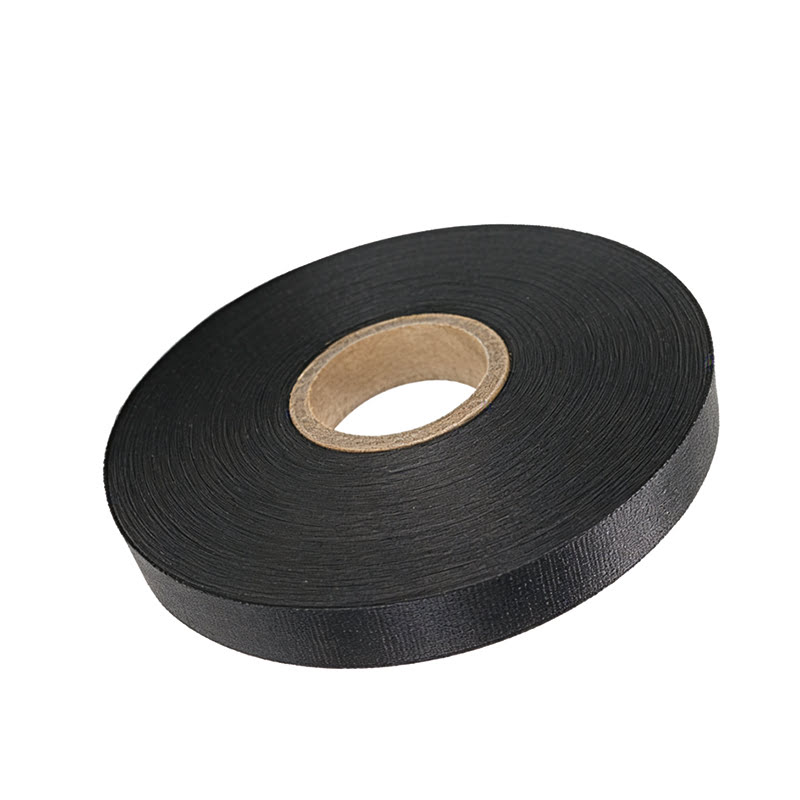

Semi-Conductive Nylon (Polyester) Tape is made of polyester tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.
Suitable for wrapping and core wire for shielding and banding, such as high voltage XLPE polyethylene cables, high or extra high voltage power cable, mining cable…
Characteristics
• Uniform semi-conductivity to balance electric field
• Tough tear-resistant nylon base
• Moisture and chemical resistance
| Code List NO. |
Thickness um |
Mass Per Unit Area g/m2 |
Tensile MPa |
Elongation % |
Surtace Resistance Ω |
Volume Resistance Ω.com |
| 17000-SN100 | 100±20 | 90±10 | >120 | >25 | <1000 | <1*105 |
| 17000-SN120 | 120±20 | 100±10 | >140 | >40 | <1000 | <1*105 |
| 17000-SN140 | 140±20 | 110±10 | >150 | >40 | <1000 | <1*105 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1. Width, Length, Color, ID and OD… All can be adjusted according to the customer request.
2. Jumbo Roll, Slit Pad, Traverse Spool… Package are available upon request.
