Applications

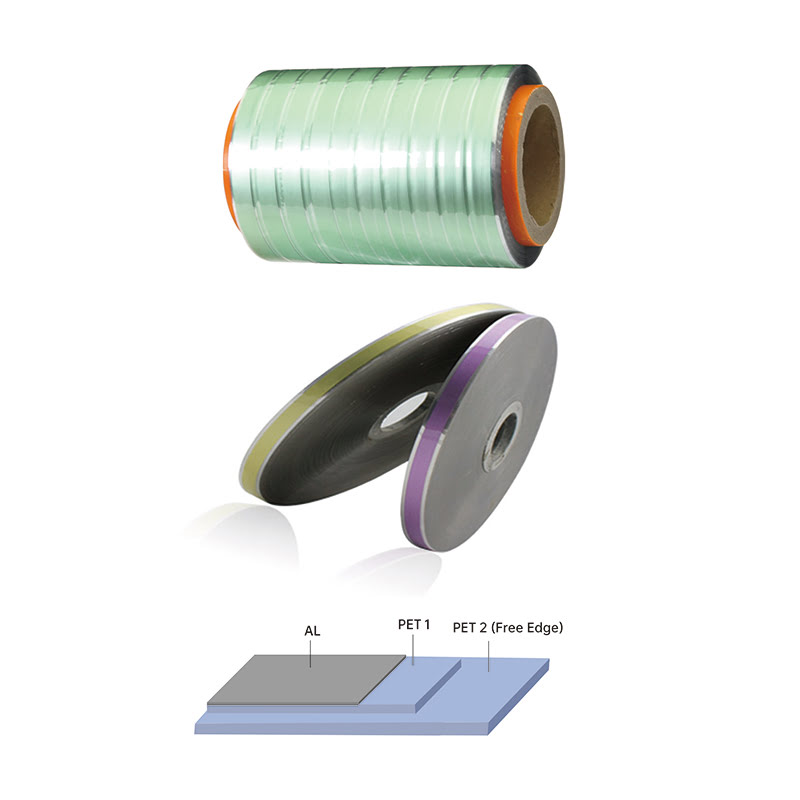

AL(Foil)+PET+PET(Free Edge) Tape
Description
General purpose, Three-layer tape with film layer which overlaps the foil, combining the attributes of shielding tape with a core binder in cable applications. The tape has great flexibility and high tensile strength, and its combined characteristics mean it can be used to create best shielding and insulation for communication cable…
Characteristics
• Enhance productivity by Free Edge PET and cost saving
• Different colors available
• Great flexibility, high tensile strength
| Code List No. |
Total Thickness um |
Foil Thickness um |
Film 1 Thickness um |
Film 2 Thickness um |
Tensile MPa |
Elongation % |
| 55000-F091212 | 39±10% | 9±10% | 12±10% | 12+10% | >60 | >20 |
| 55000-F091519 | 49±10% | 9±10% | 15±10% | 19+10% | >70 | >30 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1. Width, Length, Color, ID and OD… All can be adjusted according to the customer request.
2. Jumbo Roll, Slit Pad, Traverse Spool… Package are available upon request.
