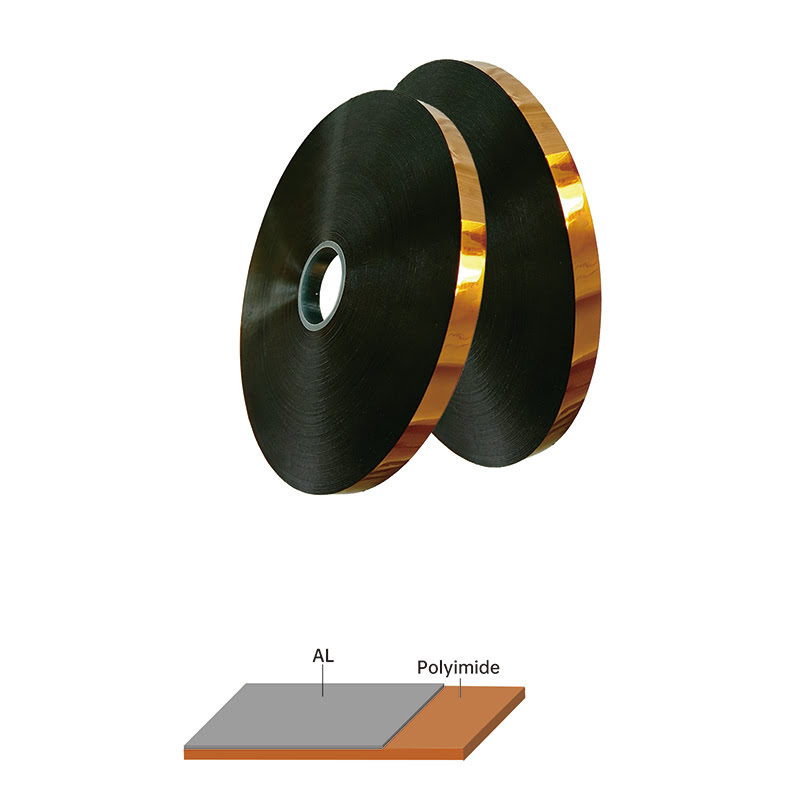

AL+Polyimide Tape
Description
Aluminum Polyimide shielding tape is a versatile solution engineered for demanding electrical applications. Combining superior flexibility with extraordinary tensile strength, it ensures seamless wrapping and robust mechanical protection for complex cable architectures. Its resilient structure is specifically designed to withstand extreme environments, offering exceptional resistance to high temperatures and radiation without compromising structural integrity.
Beyond durability, it delivers outstanding dielectric performance, maintaining low signal loss under thermal stress. Typically used to shield individual pairs in high-temperature cables, it provides essential insulation for aerospace and medical electronics, ensuring long-term reliability and safety.
Characteristics
• High temperature resistance to 400℃
• Excellent shielding and insulation performance
• Great flexibility, high tensile strength
|
Code List No. |
Total Thickness um |
Foil Thickness um |
Film Thickness um |
Weight g/m2 |
Tensile MPa |
Elongation % |
| 80000-F15 | 33±10% | 15±3 | 15±3 | 157.8±20 | >75 | >8 |
| 80000-F23 | 41±10% | 15±3 | 23±3 | 169±20 | >80 | >9 |
| 80000-E12 | 33±10% | 18±3 | 12±3 | 180.3±20 | >75 | >8 |
| 80000-E23 | 44±10% | 18±3 | 23±3 | 195.7±20 | >90 | >10 |
| 80000-T20 | 43±10% | 20±3 | 20±3 | 209.3±20 | >90 | >10 |
| 80000-T23 | 46±10% | 20±3 | 23±3 | 213.5±20 | >100 | >11 |
Package
1. Width, Length, Color, ID and OD… All can be adjusted according to the customer request.
2. Jumbo Roll, Slit Pad, Traverse Spool… Package are available upon request.
