Description

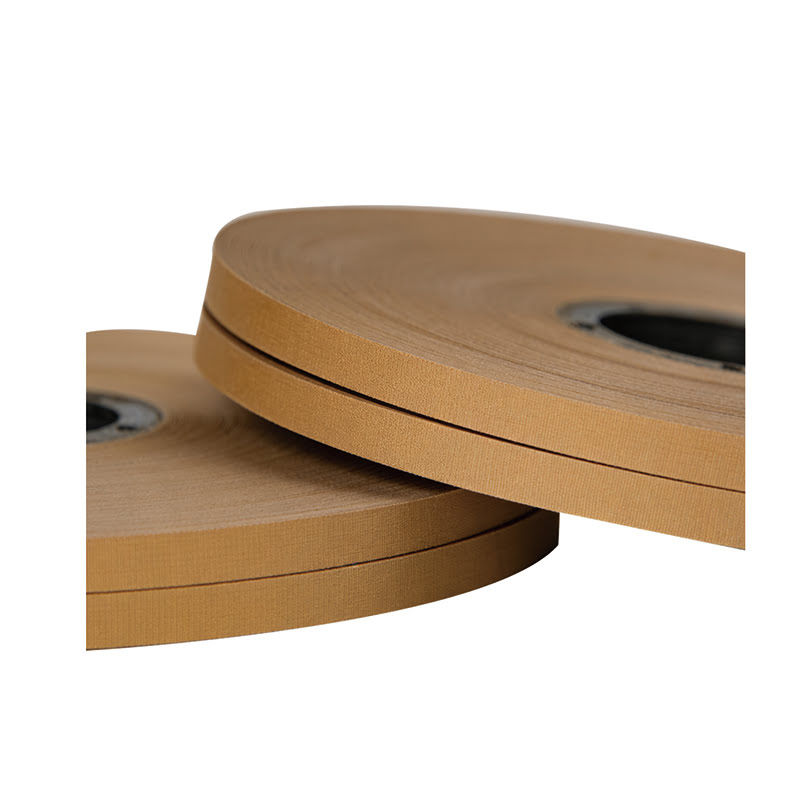

High Voltage Cable Insulating Paper is made from high-purity sulfate wood pulp through special processing. Features high dielectric strength, low dielectric loss, high air permeability, low moisture, good heat resistance.
Used for oil-impregnated paper insulated cables, HV cables, transformers, instrument transformers and other electrical insulation.
Characteristics
• Tear-resistance, tight wrapping
• Good insulation and flexible
• Oil and heat resistance
| Code List NO. |
Thickness um |
Density g/cc |
Tensile N/15mm |
Elongation % |
Water Content % |
Dielectric Strength kV/mm |
| 13200-EP080 | 80±5 | 0.9±0.05 | >80 | >2 | <10 | >8 |
| 13200-EP100 | 100±5 | 0.9±0.05 | >80 | >2 | <10 | >8 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1. Width, Length, Color, ID and OD… All can be adjusted according to the customer request.
2. Jumbo Roll, Slit Pad, Traverse Spool… Package are available upon request.
