Applications
Description

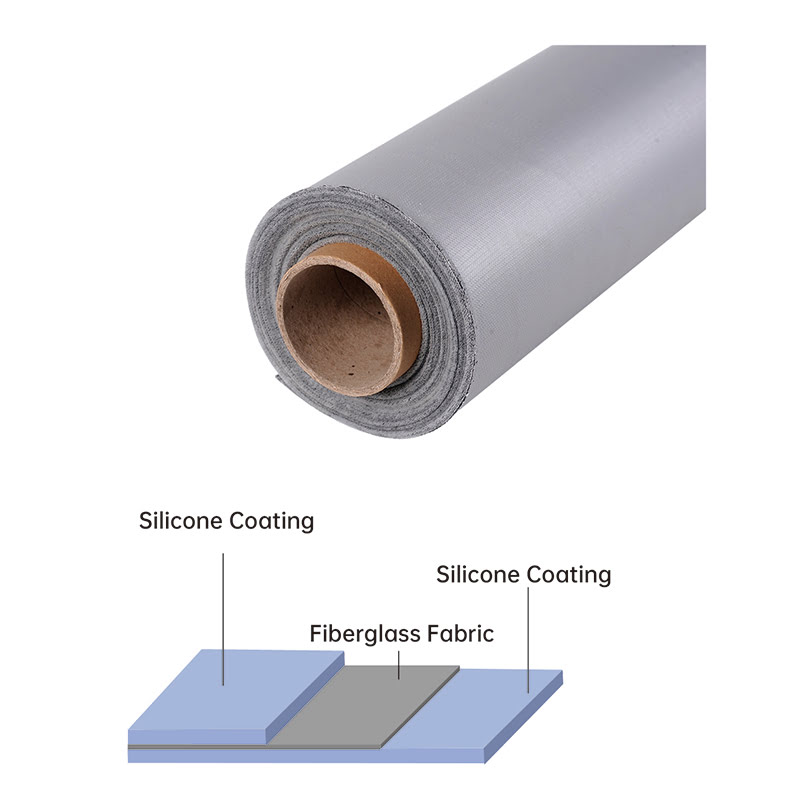

This tape is straight woven continuous filament electrical grade glass fabric treated with a fully cured silicone rubber. It offers good dielectric strength and the excellent mechanical properties required for many high temperature applications.
It meets the performance requirements of class 220℃ and offers good resistance to oil, moisture and ozone. This tape is suggested for use in shipboard laminated power cable applications…
Characteristics
• Good dielectric strength and stable insulation
• High tensile strength and good flexible
• High temperature resistant, flame retardant, waterproof
| CodeList No. |
Total Thickness um |
Total Weight g/m2 |
Fiberglass Weight g/m2 |
Coating Weight g/m2 |
Tensile Mpa |
Thermal Class Temperature ℃ |
Dielectric Breakdown KV/mm |
| 16600-SG250 | 250±10% | 380±10% | 210±10% | 170±10% | >100 | >220 | >10 |
| 16600-SG300 | 300±10% | 450±10% | 210±10% | 240±10% | >100 | >220 | >10 |
| 16600-SG380 | 380±10% | 530±10% | 210±10% | 330±10% | >100 | >220 | >13 |
| 16600-SG400 | 400±10% | 560±10% | 210±10% | 350±10% | >100 | >220 | >15 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1.Width, Length, ID and OD... All can be adjusted according to the customer request.
2.Jumbo Roll, Slit Pad, Traverse Spool... Package are available upon request.
