Applications
Description

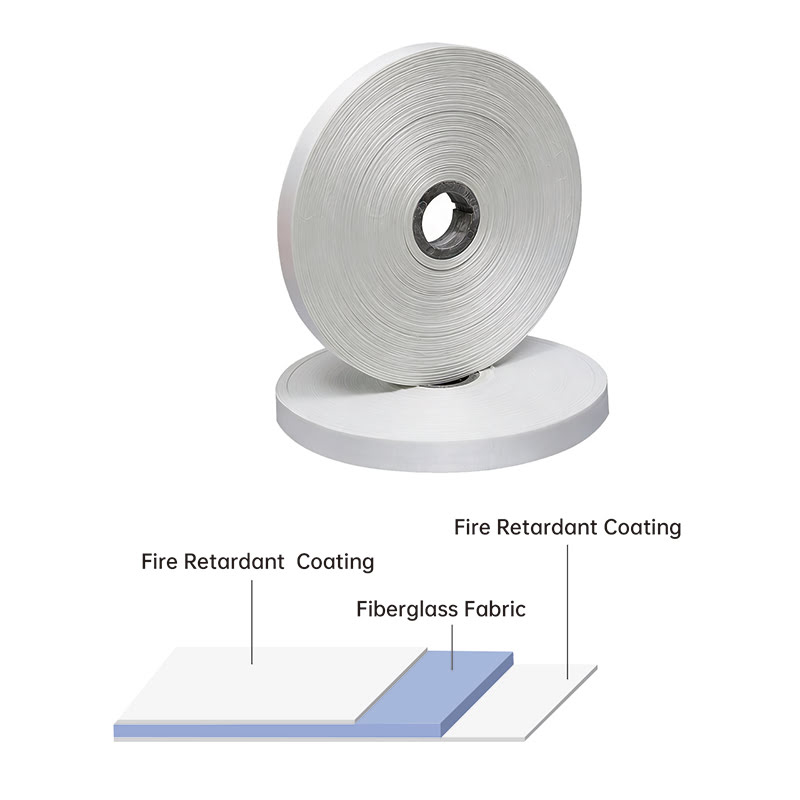

Flame retardant cable wrapping tape. A closely woven fiberglass substrate coated on both sides with a cross-linked, halogen free, vinyl based white low smoke fire retardant compound. Coating on both sides gives a surface finish which reduces tape slippage. It is mainly applied to XLPE, PVC, marine cable and mineral flame retardant cable and can resist temperature at around 400-500℃.
Characteristics
Excellent flame retardant and fireproof performance
High temperature resistant and high mechanical strength
Stable insulation and corrosion resistance
| CodeList No. |
Total Thickness um |
Weight g/m2 |
Tensile N/25mm |
Oxygen Index % |
Smoke Index DM |
Fire Grade ℃ |
| 16000-F130 | 130+30 | 140+30 | >450 | >50 | <100 | >400 |
| 16000-F150 | 150+30 | 170±30 | >450 | >50 | <100 | >400 |
| 16000-F170 | 170+30 | 190+30 | >450 | >50 | <100 | >400 |
| 16000-F200 | 200+30 | 220+30 | >450 | >50 | <100 | >400 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1.Width, Length, ID and OD... All can be adjusted according to the customer request.
2.Jumbo Roll, Slit Pad, Traverse Spool... Package are available upon request.
