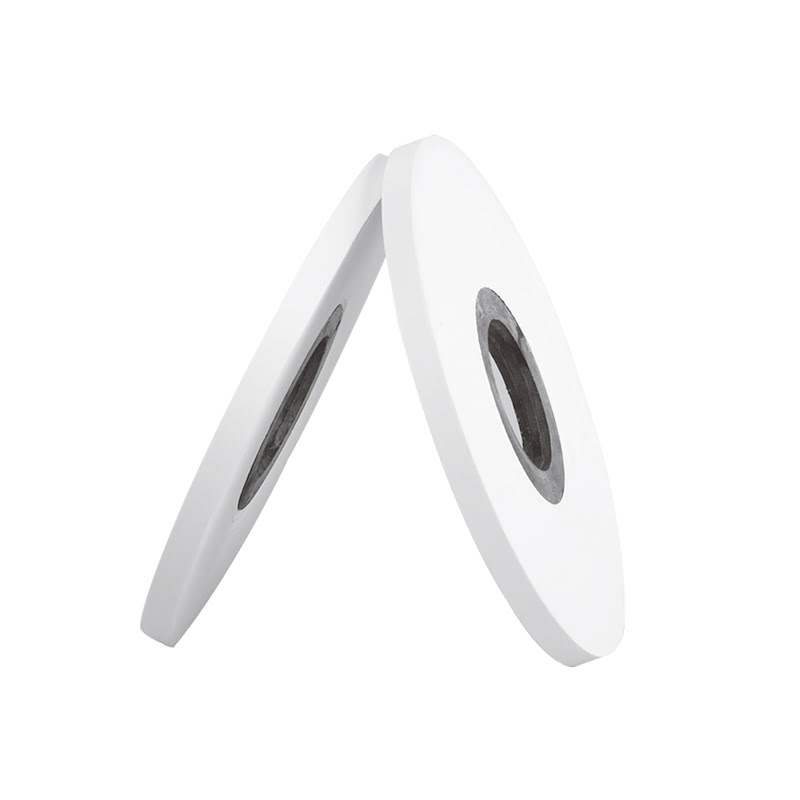

Plain Immersion Polyester Non-Woven Fabric Tape
Description
Plain Immersion Polyester base Non-Woven Fabric tape for bedding & separating purposes that can withstand extrusion and vulcanization temperatures between cable components…
Characteristics
• Stable insulation with breathable
• Good flexible and fitting performance
• Light weight, low cost
| Code List No. |
Thickness um |
Weight g/m2 |
Tensile N/15mm |
Elongation % |
Short Term Stability ℃ |
Long Term Stability ℃ |
Moisture Content % |
| 14000-CF05 | 50±10 | 25±5 | >33 | >12 | 230 | 90 | <5 |
| 14000-CF06 | 60±10 | 30±5 | >42 | >12 | 230 | 90 | <5 |
| 14000-CF07 | 70±10 | 35±5 | >50 | >12 | 230 | 90 | <5 |
| 14000-CF08 | 80±10 | 40±5 | >54 | >12 | 230 | 90 | <5 |
| 14000-CF09 | 90±10 | 45±5 | >63 | >12 | 230 | 90 | <5 |
| 14000-CF10 | 100±10 | 50±5 | >70 | >12 | 230 | 90 | <5 |
| 14000-CF15 | 150±20 | 70±5 | >80 | >12 | 230 | 90 | <5 |
| 14000-CF20 | 200±20 | 80±5 | >85 | >12 | 230 | 90 | <5 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1.Width, Length, ID and OD... All can be adjusted according to the customer request.
2.Jumbo Roll, Slit Pad, Traverse Spool... Package are available upon request.
