Applications
Non-Continue Aluminum Polyester Tape

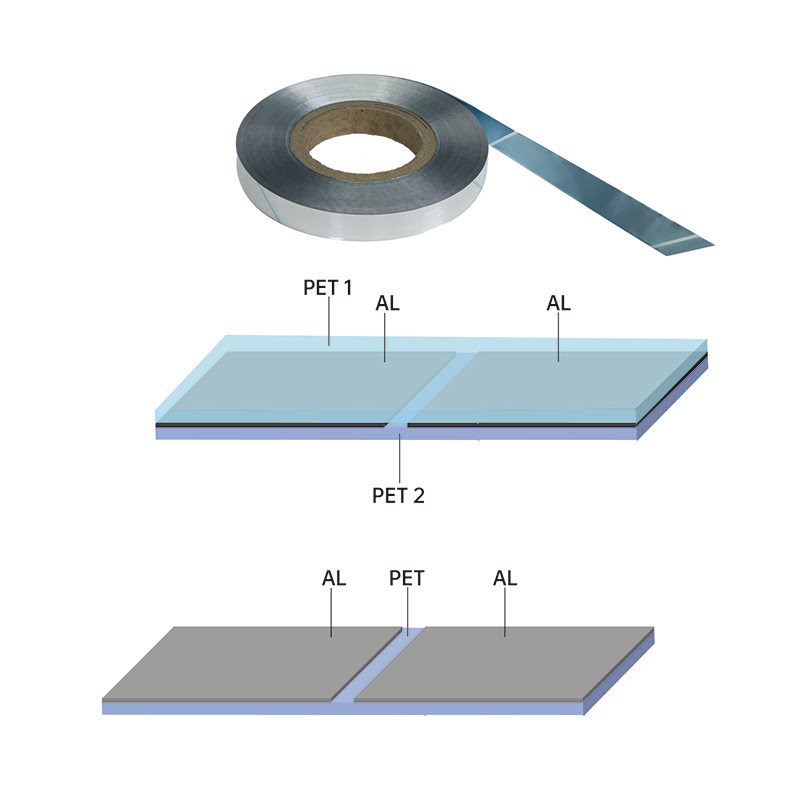

PET+Non-Continue AL+PET Tape Non-Continue AL+PET Tape
Description
General purpose, lamination tape with film layers which overlaps the non-continue Aluminum Foil.
Typically used in Alarm cables, signal control cables, and rail transit cables…
Characteristics
• Effective crosstalk prevention
• Maintains UTP (Unshielded Twisted Pair) characteristics
• Available in various structures, thicknesses and non-continue widths
| Code List No. |
Total Thickness um |
Foil Thickness um |
Film 1 Thickness um |
Film 2 Thickness um |
Tensile MPa |
Elongation % |
| 54000-NA09T | 65±10% | 9±10% | 25±10% | 25+10% | >60 | >60 |
| 54000-NA25T | 81±10% | 25±10% | 25±10% | 25+10% | >70 | >50 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1. Width, Length, Color, ID and OD… All can be adjusted according to the customer request.
2. Jumbo Roll, Slit Pad, Traverse Spool… Package are available upon request.
Please click the button below to contact us for more!
