Applications

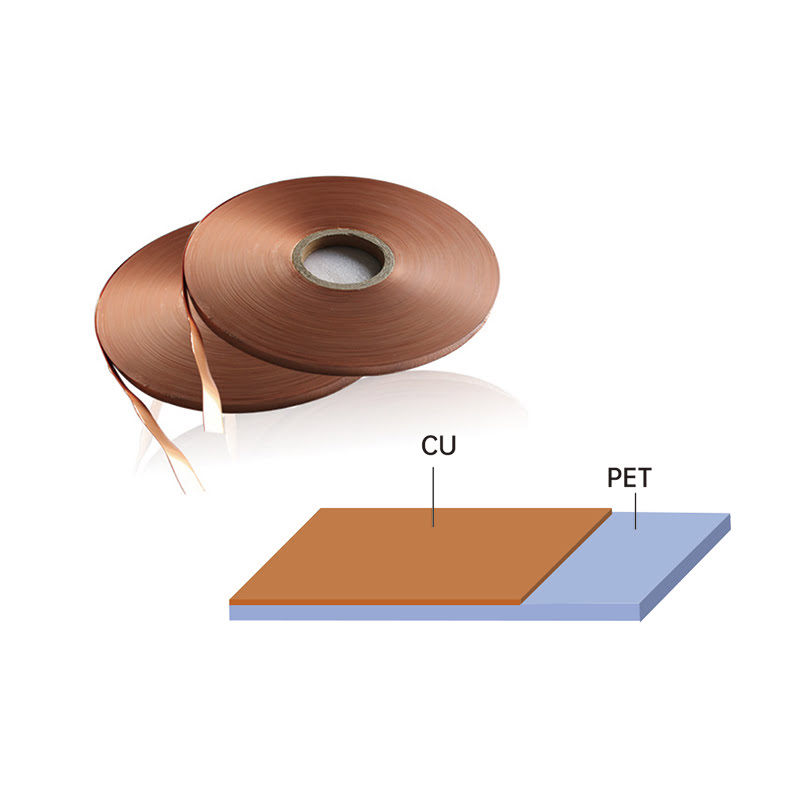

Glossy Copper Polyester Tape
Glossy CU+PET Tape
Description
General purpose, great flexibility and high tensile shielding tape. Typically used as shielding to wrap and shield individual pairs in cable…
Characteristics
• Better shielding and conductivity performance
• Superior oxidation and corrosion resistance
• High tensile strength and elongation
|
Code List No. |
Total Thickness um |
Foil Thickness um |
Film Thickness um |
Weight g/m2 |
Tensile MPa |
Elongation % |
| 80000-F15 | 33±10% | 15±3 | 15±3 | 157.8±20 | >75 | >8 |
| 80000-F23 | 41±10% | 15±3 | 23±3 | 169±20 | >80 | >9 |
| 80000-E12 | 33±10% | 18±3 | 12±3 | 180.3±20 | >75 | >8 |
| 80000-E23 | 44±10% | 18±3 | 23±3 | 195.7±20 | >90 | >10 |
| 80000-T20 | 43±10% | 20±3 | 20±3 | 209.3±20 | >90 | >10 |
| 80000-T23 | 46±10% | 20±3 | 23±3 | 213.5±20 | >100 | >11 |
Package
1. Width, Length, Color, ID and OD… All can be adjusted according to the customer request.
2. Jumbo Roll, Slit Pad, Traverse Spool… Package are available upon request.
Please click the button below to contact us for more!
