Applications
Description

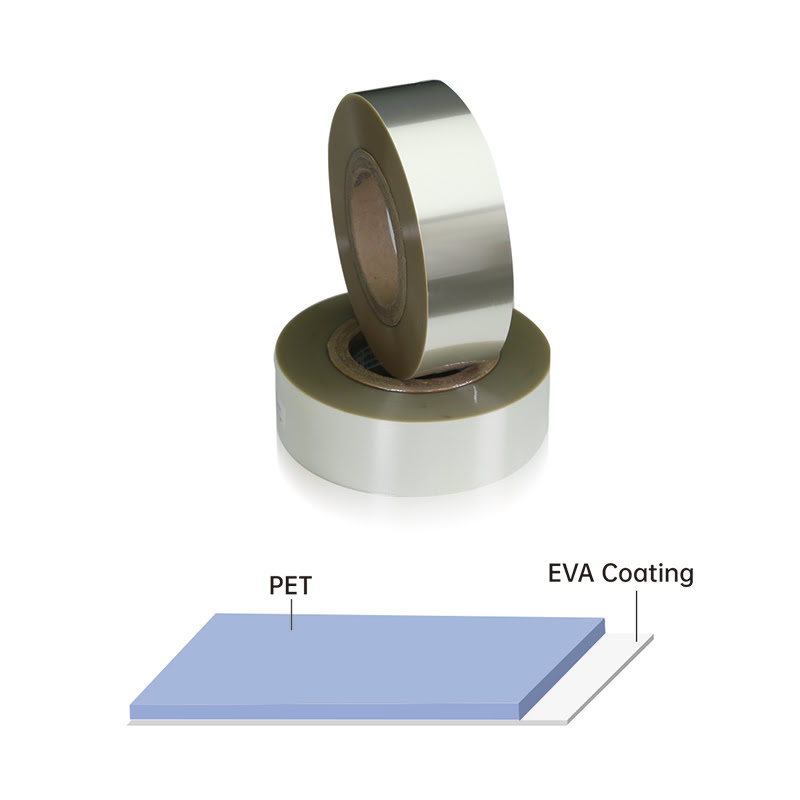

General purpose, Fusible heat seal Polyester tape, which is designed to form a destructible bond to both polyethylene, allows for ease in termination and aids in meeting water path penetration specifications. High strength quadruple shield outer tapes allow for ease in processing and ensure shielding integrity.
Typically used in HDMI/USB...cables to bond to the polyethylene foam core…
Characteristics
• Good insulation, high mechanical strength and tensile
• Excellent fusible heat seal and bond to cable jacket
• Anti-corrosion, moisture proof
| Code List No. |
Thickness um |
Density g/m2 |
Tensile MPa |
Elongation % |
Heat Seal Temperature ℃ |
Heat Seal Strength N/15mm |
| 10400-1208 | 20±5 | 30±6 | >80 | >60 | 125-155 | >3 |
| 10400-1508 | 23±5 | 34±6 | >100 | >80 | 125-155 | >4 |
| 10400-1510 | 25±5 | 37±6 | >100 | >80 | 125-155 | >4 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1. Width, Length, Color, ID and OD… All can be adjusted according to the customer request.
2. Jumbo Roll, Slit Pad, Traverse Spool… Package are available upon request.
