Applications

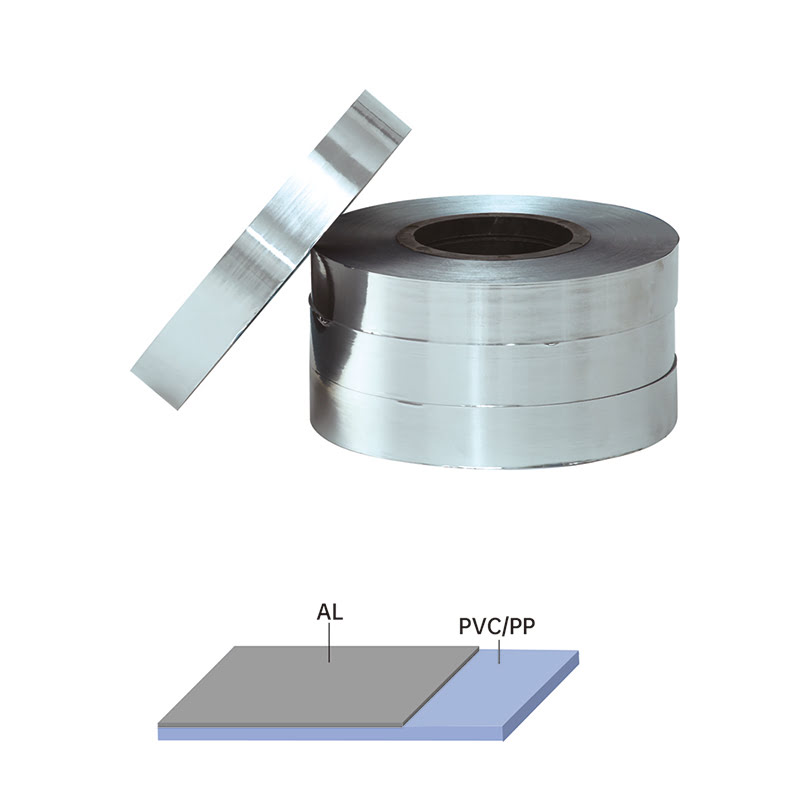

AL+PVC Tape AL+PP Tape
Description
General purpose, great flexibility shielding tape. When heated to a certain temperature, the PVC or PP film layer can stick together with other PVC or PP materials. Typically used as shielding tape to wrap and shield individual pairs in cable…
Characteristics
• High shielding and insulation performance
• Excellent bond to PVC or PP jacket
• High tensile strength and elongation
| AL+PVC |
|
Code List No. |
TotalThickness um |
Foil Thickness um |
FilmThickness um |
Weight g/m2 |
Tensile MPa |
Elongation % |
| 59000-F27 | 55±10% | 25±10% | 27±10% | 109.2±10% | >40 | >10 |
| AL+PP |
|
Code List No. |
TotalThickness um |
Foil Thickness um |
FilmThickness um |
Weight g/m2 |
Tensile MPa |
Elongation % |
| 58000-P25 | 37±10% | 9±10% | 25±10% | 50.3±10% | >60 | >50 |
Above characteristics can be changed to meet the specific requirements of customers.
Package
1. Width, Length, Color, ID and OD… All can be adjusted according to the customer request.
2. Jumbo Roll, Slit Pad, Traverse Spool… Package are available upon request.
